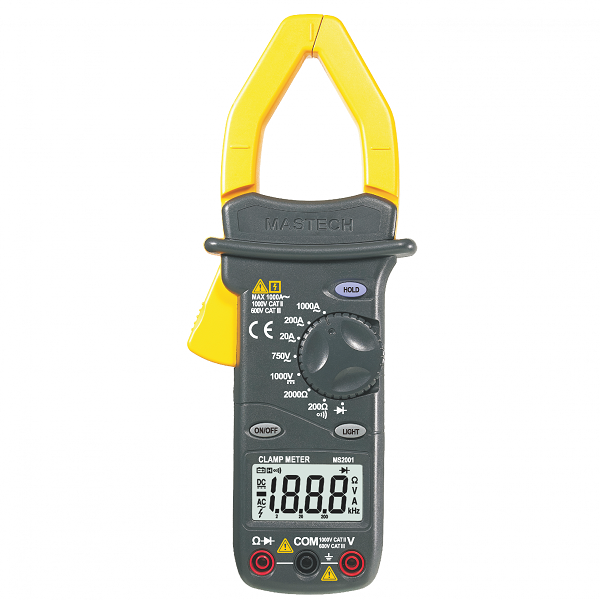

Mastech MS2001 – Digital AC Clamp Meter- 1000A AC

– DC Voltage 1000V
– AC Voltage 750V
– AC Current 20A/200A/1000A
– Resistance: 200Ω/2000Ω
– Maximum voltage between terminals and earth ground: CAT II 1000V and CAT III 600V
– Display: LCD, 1999 counts, updates 2-3/sec.
– Polarity indication: ‘ – ‘ displayed for negative polarity.
– Overrange indication: Only figure ” 1 ” on the display.
– Jaw opening capability: 42mm (Max conductor size)
– Power: 9V NEDA 1604 6F22 006P.
– Operating temperature: 0°C to 40°C
– Storage temperature: -10°C to 50°C
– Temperature factor: 0.1×Accuracy /°C (<18°C or >28°C )
– Altitude: 2000 m
– Dimension: 250×99×43mm
– Weight: Approx. 460g
– Certificate: CAT II 1000V / CAT III 600V RoHS
